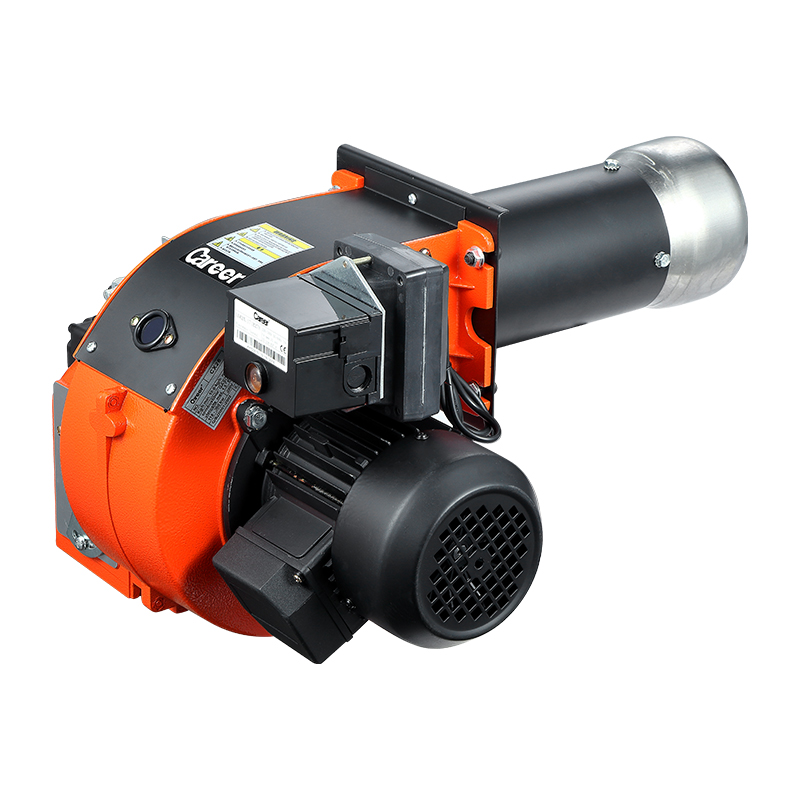

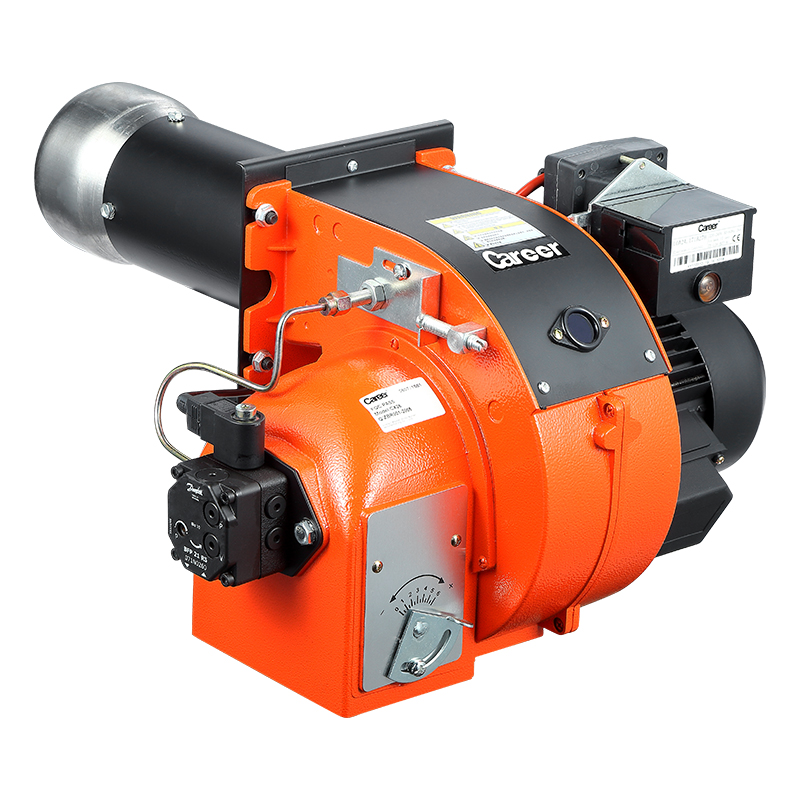

CX monoblock light oil series burner is fully automatic. It consists of fuel supply, atomization, air supply, ignition system, flame monitoring and operation control. It can be installed in the same frame to realize full automatic control of combustion process.
The nozzle sprays fuel through high-pressure mechanical atomization
Quiet operation
Manual flow regulation
Maintenance of atomizing device can be carried out easily without removing from boiler.
With air flow regulator
Energy saving
Easy to find in component Market
| Light Oil series - CX26 | ||
| Oil Consumption | 10.0-26.0 | (kg/hr) |
| Output Power | 118-308 | (kw) |
| Heat Power | 102000-265000 | (kcal/h) |
| Motor Power | 250 | (W) |
| Power Supply | 220/50 | (V/Hz) |
| Control Mode | Signle | - |
| Package Size | 590*525*350 | (mm) |
| Gross Weight | 20 | (kg) |
| Model | Company | A | B | C | E | F | G | H | I | J | M |
| CX26 | mm | 420 | 205 | 170 | 690 | 358 | 137 | 135 | 114 | M10 | 113 |
Please indicate which product you are interested in, and our sales team will be in touch with you shortly.
